DM Safety’s Marine High Pressure CO₂ Fire Suppression System offers fast, reliable protection for high-risk areas like engine rooms, cargo holds, and machinery spaces in maritime and offshore environments. Using non-conductive, non-corrosive CO₂ gas, it safely suppresses Class B and C fires without residue or damage to vital equipment. Fully compliant with IMO, SOLAS, and NFPA 12 standards, and approved by ABS, DNV, and Lloyd’s Register, the system is trusted by commercial fleets and offshore rigs worldwide. With over 20 years of expertise, DM Safety provides end-to-end support—from system design to annual inspections—ensuring 24/7 readiness and compliance.
STEP-BY-STEP FIRE SUPPRESSION PROCESS
HOW IT WORKS?
Detection
The system activates manually or via heat/flame detectors placed in high-risk areas like engine rooms and cargo holds. Once a fire is detected, the control unit triggers the suppression sequence.
Pre-Discharge Warning
Visual strobes and alarms alert personnel to evacuate. Simultaneously, the system shuts down fans, ventilation, and fuel lines to contain the fire and CO₂.
Time Delay Sequence
A 20–60 second delay allows safe evacuation and system checks before CO₂ is released.
Discharge of CO₂
Pressurized CO₂ is released through corrosion-resistant pipes and nozzles, ensuring full area coverage.
Flooding Protected Area
CO₂ fills the space, lowers oxygen below 15%, and cools the environment to extinguish the fire
Fire Suppression & Post-Discharge
The fire is suppressed quickly and re-ignition is prevented. Once safe, ventilation resumes and the system is recharged.
MAIN COMPONENTS of THE SYSTEM
CO₂ Cylinders
High-pressure steel cylinders (58 bar) are stored in a dedicated CO₂ room.
Discharge Manifold
Connects multiple cylinders for simultaneous gas release.
Nozzles
Strategically located to ensure even CO₂ distribution.
Release Station
Located outside the hazard area for emergency activation.
Time Delay Unit
Provides a delay (20–60 seconds) to allow crew evacuation.

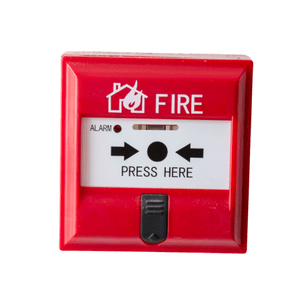

Alarm System
Visual and audible alarms to alert personnel before discharge.
KEY BENEFITS
DM Safety’s Marine CO₂ Fire Suppression System combines rapid response, reliable safety, and long-term system integrity—making it the preferred solution for protecting enclosed marine spaces such as engine rooms, cargo holds, and machinery compartments. Its clean, efficient suppression method ensures minimal downtime and maximum protection for both crew and critical equipment.
- Rapid suppression of Class B and C fires
- No water damage to electrical or sensitive equipment
- Clean agent — no residue or clean-up required
- Reliable performance in extreme marine environments
- Fully compliant with SOLAS, IMO, NFPA 12, ABS, DNV, and LR
SAFETY FEATURES
At DM Safety, protecting lives is our top priority. Our Marine High Pressure CO₂ Fire Suppression System is built with multiple layers of safety features to ensure reliable operation while minimizing risk to crew members during fire emergencies. Each system includes:
- Pre-discharge alarms
- Time-delay mechanism
- Automatic shutdown of ventilation and fuel systems
- Routine testing and servicing schedules
- Manual and remote release options
- Pressure monitoring and control units
- Zone-specific discharge control
- Failsafe locking and isolation mechanisms
WHY CHOOSE DM SAFETY?
Protecting your vessel demands expertise and reliability. Here’s why DM Safety is the top choice for Marine CO₂ Systems:
CERTIFICATIONS & STANDARDS
At DM Safety, we recognize that safety at sea is not just about having fire suppression equipment on board—it’s about complete trust in that system’s ability to perform under pressure and comply with the strictest international standards. Our High Pressure Marine CO₂ Fire Suppression Systems are meticulously engineered, tested, and certified to meet—and often surpass—the rigorous requirements set by global regulatory bodies. These include SOLAS, IMO, NFPA 12, and approvals from leading classification societies such as DNV, ABS, and Lloyd’s Register.
Each component is designed with reliability, performance, and crew safety in mind, ensuring full operational readiness in the most critical environments, from engine rooms and cargo holds to offshore platforms and support vessels. With DM Safety, you’re not only meeting regulations—you’re exceeding expectations. Our systems are trusted by marine professionals, regulatory inspectors, and port authorities worldwide, delivering unmatched fire protection and long-term peace of mind for every voyage.
APPLICATIONS
DM Safety’s Marine High Pressure CO₂ System offers fast, clean, and reliable fire suppression for critical marine and offshore spaces—ideal where water-based systems aren’t suitable.
- Engine Rooms
- Cargo Pump Rooms
- Machinery Spaces
- Paint & Chemical Lockers
- Generator Rooms
Engine Rooms
Machinery Spaces
Paint & Chemical Lockers
Generator Rooms
Cargo Pump Rooms
